ABM? Multi-function Board (MB series) has a wide range of density and thickness,are widely used in building insulation. The product is mainly applied in partitions, metal/stone cladding curtain walls, light steel roofs, wall frames, ceilings, fire doors and floors to conserve energy,control sound,and provide fire protection.
| Product Type | MB 40 | MB 50 | MB 60 | MB 80 | MB 100 | MB 120 |
| Nominal Density, kg/m3 | 40 | 50 | 60 | 80 | 100 | 120 |
| Thickness, mm | 50~150 | 40~150 | 40~250 | 25~250 | 25~200 | 25~150 |
| Size(L×W), mm | 1200 x 600 | |||||
Properties | MB 40 | MB 50 | MB60 | MB 80 | MB100 | MB120 | Unit | Test Method |
Thermal Conductivity(25℃) | ≤0. 037 | W/(m ?K) | GB/T 10295 | |||||
Reaction to Fire | A1 | --- | GB 8624 | |||||
Melting Temperature | ≥1000 | ℃ | ---- | |||||
Surface Burning Characteristics | Smoke Development≤5, Flame Spread=0 | --- | ASTM E84 | |||||
Acidity Coefficient | ≥1.6 | --- | GB/T 5480 | |||||
Water Repellence | ≥99 | ％ | GB/T 10299 | |||||
Mass Moisture Absorption | ≤0.5 | ％ | GB/T 5480 | |||||
Short-term Water Absorption (partial immersion, 24h) | ≤0.2 | kg/m2 | GB/T 30805 | |||||
Dimensional Stability | ≤0.5 | ％ | GB/T 30806 | |||||
Corrosiveness | Corrosion Free | --- | ASTM C665 | |||||
Formaldehyde Emission | ≤0.5 | mg/(kg?h) | GB/T 32379 | |||||
Noise Reduction Coefficient（NRC） | ≥0.80 | --- | GB/T 18696 | |||||

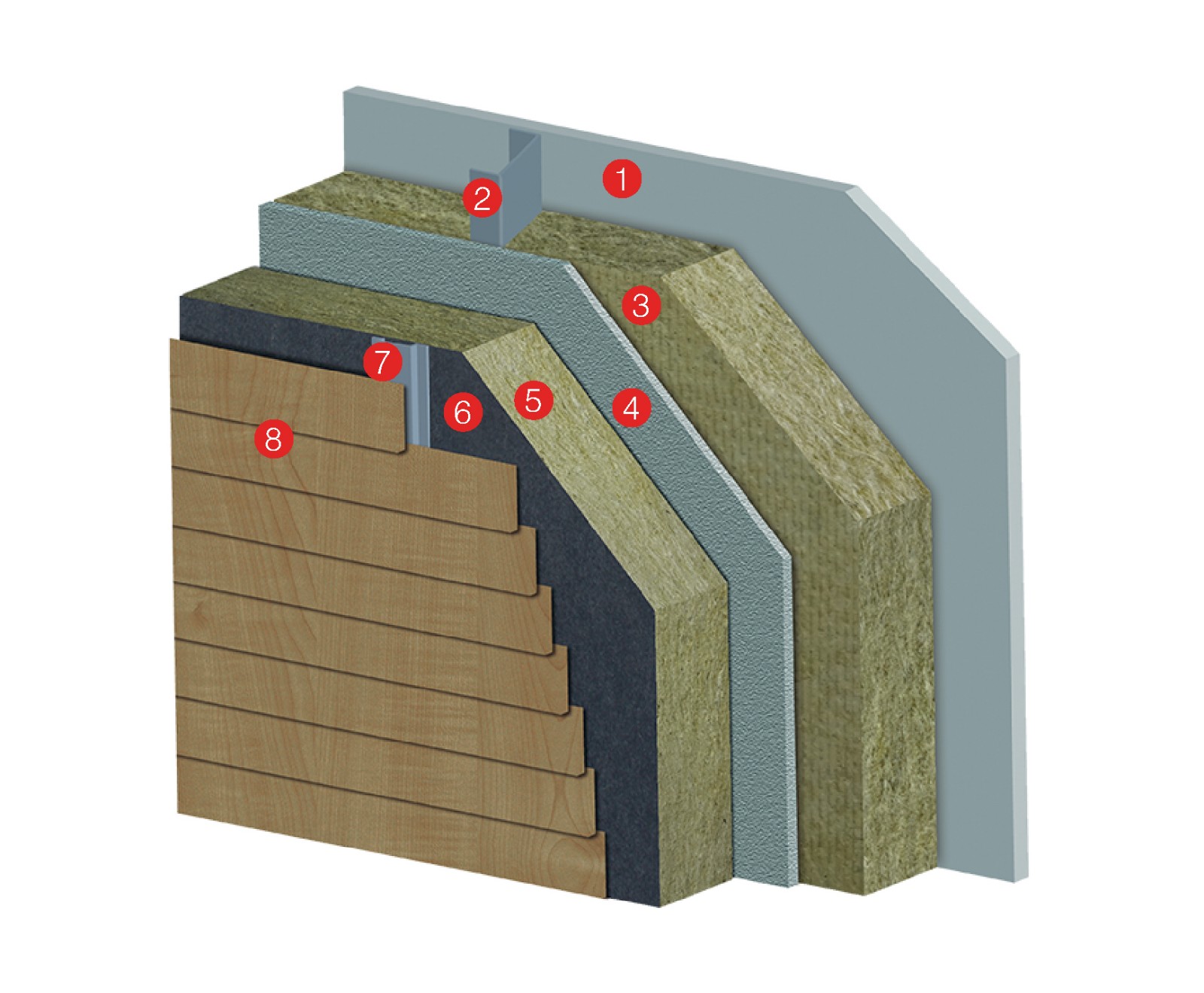

1.Gypsum Board
2.Light Steel Frame
3.ABM Multi-function Board (MB series)
4.Fiber Cement Board
5.ABM Multi-function Board (MB series)
6.Facing
7.Stud
8.Cladding

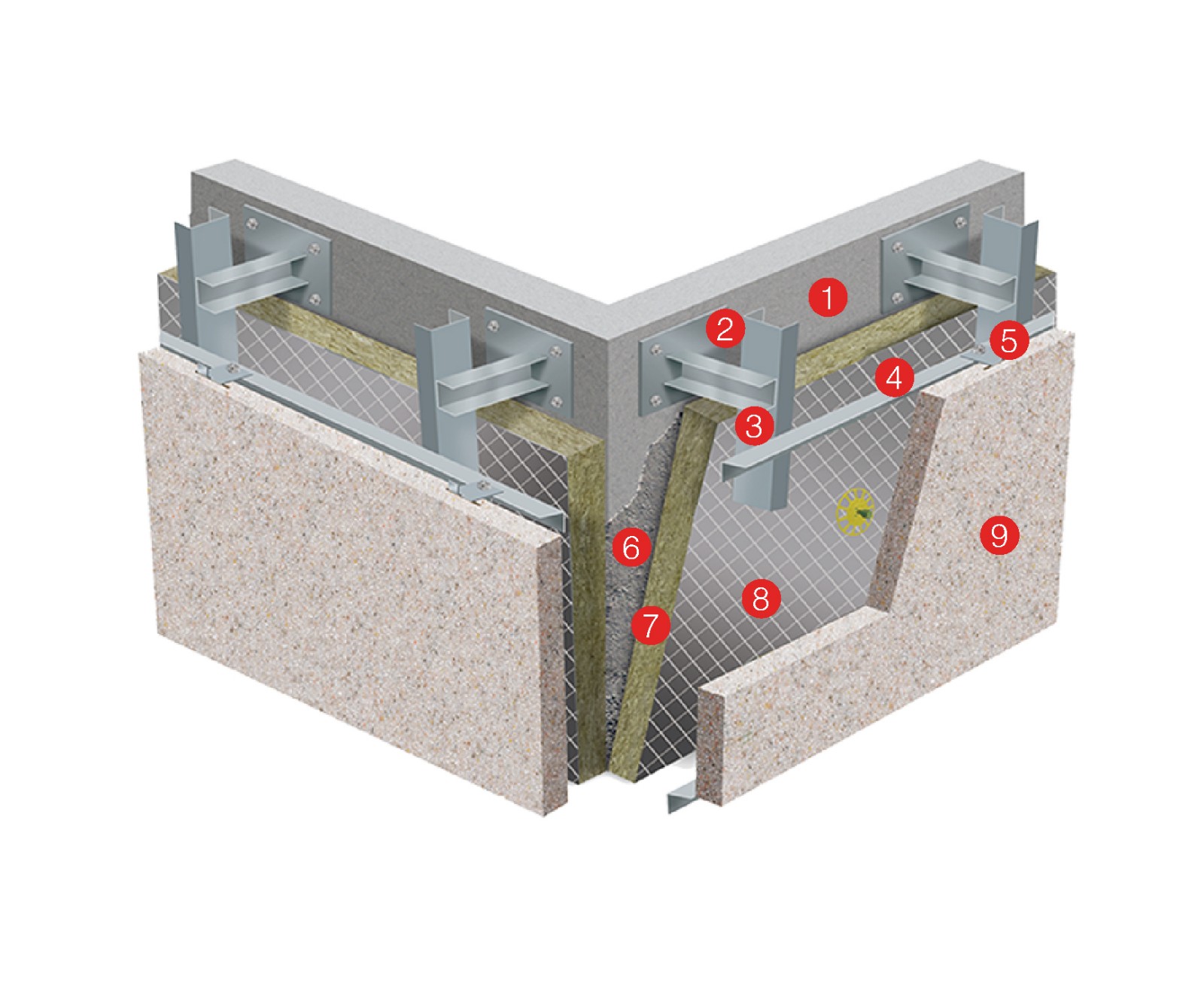

1.Substrate
2.Embedded Parts
3.Vertical Keel
4.Horizontal Keel
5.Anchor
6.ABM External Thermal Insulation Board (FRB series)
7.Stone Cladding

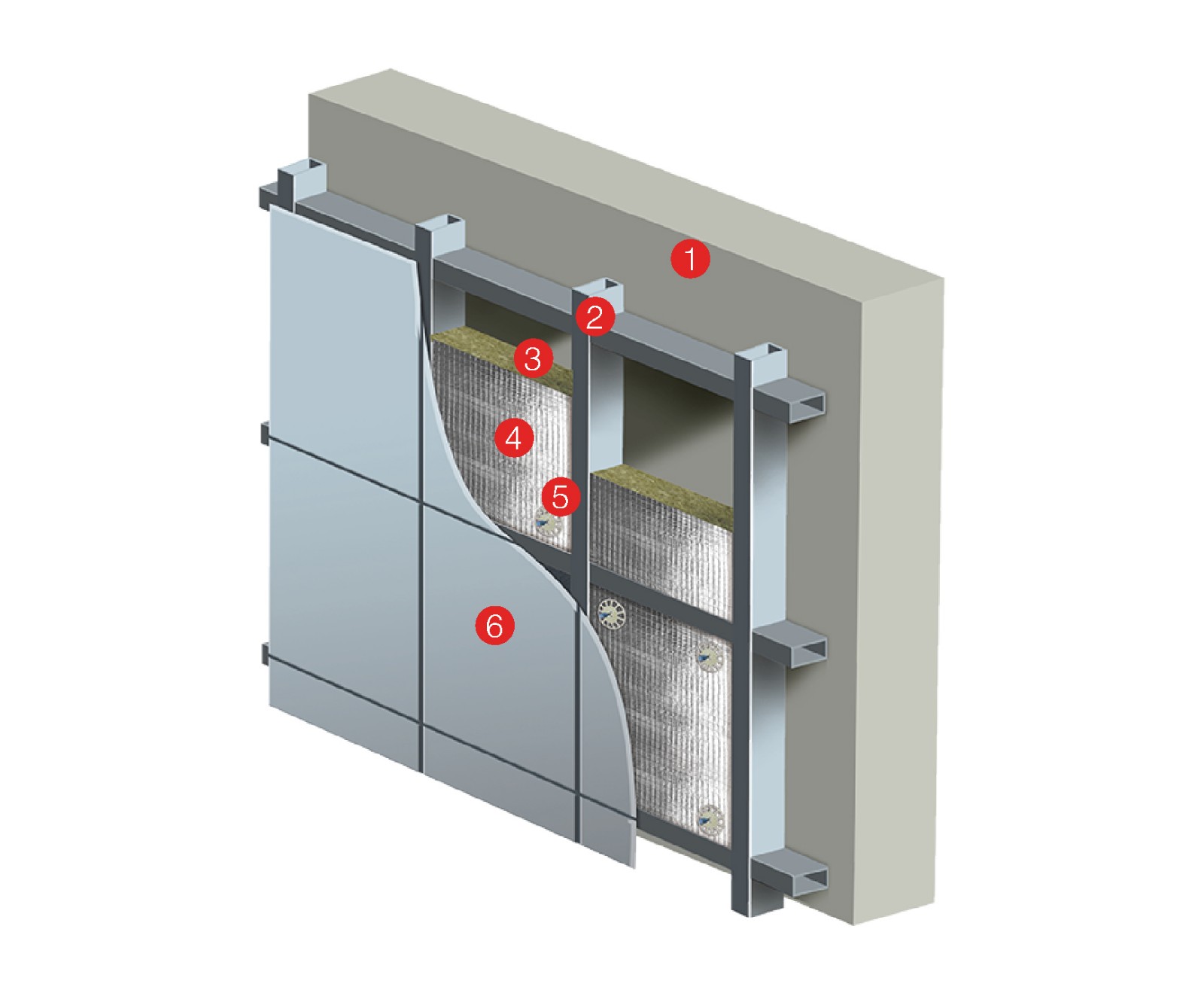

1.Substrate
2.Steel Frame
3.ABM Multi-function Board (MB series)
4.Facing
5.Anchor
6.Metal Pane

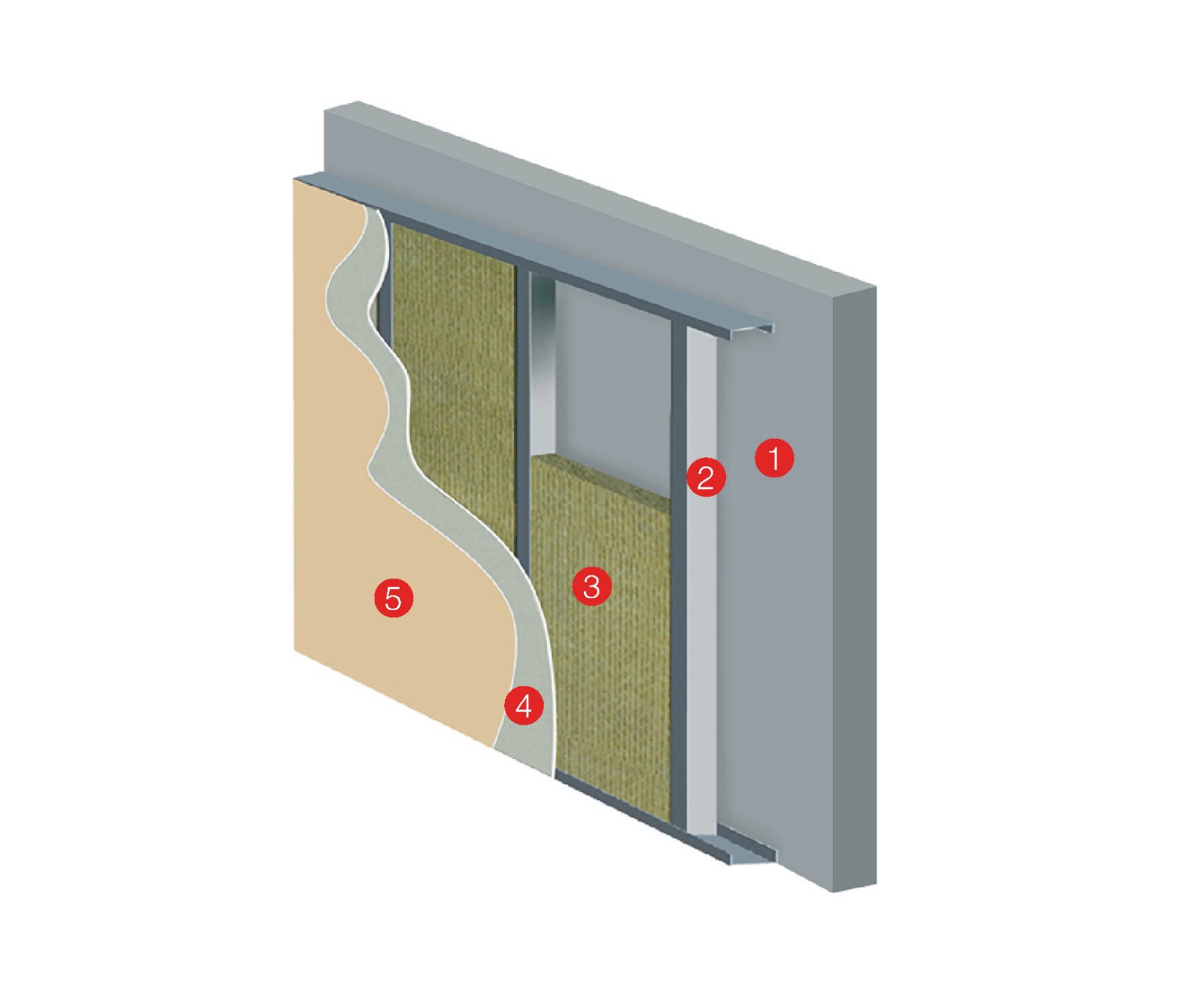

1.Gypsum Board
2.Frame
3.ABM Multi-function Board (MB series)
4.Gypsum Board
5.Finishing Coat

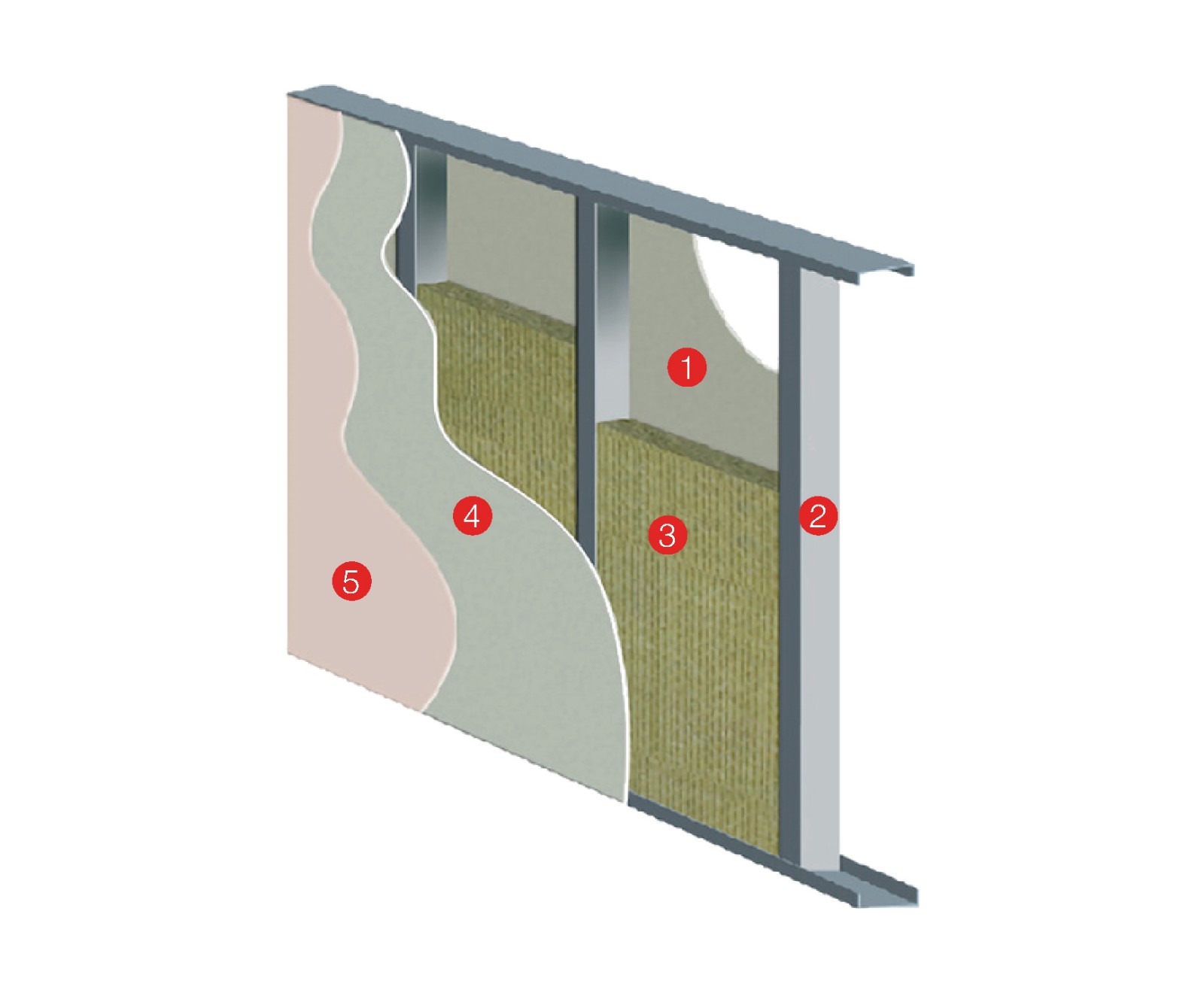

1.Gypsum Board
2.Frame
3.ABM Multi-function Board (MB series)
4.Gypsum Board
5.Finishing Coat

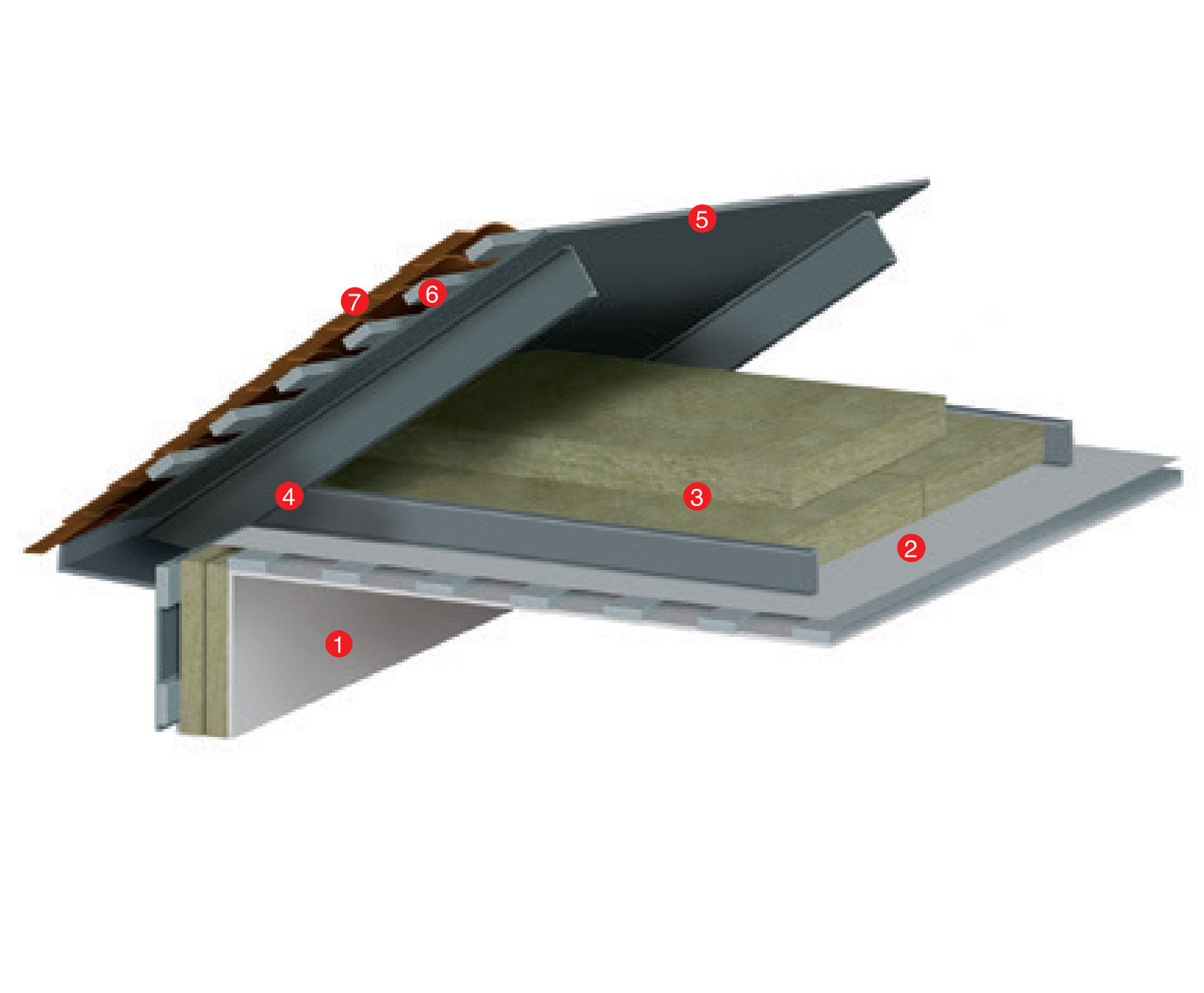

1.Interior Decorative Board
2.Waterproof and Vapor Permeable Membrane
3.ABM Multi-function Board (MB series)
4.Stud
5.Fiber Cement
6.Hanging Tile
7.Roof Tile
